GEOPANEL®

Modular formwork in plastic for the production of walls, foundations and columns in concrete

GEOPANEL is an easy and intuitive system of modular formwork in plastic used to build concrete walls, foundations and columns.

Geoplast Geopanel

Advantages

  • 1. modular and versatile on-site
  • 2. patented handles in nylon for an excellent locking of the panels
  • 3. easy dismantling and quick cleansing just with water
  • 4. high resistance (60 kN/m2) and duration of the panels



Installation Instructions

Geopanel installation









A – HANDLE
B – SPACER
D – ROLLING BAR
C – GEOPANEL 120 x 60
E – ALIGNMENT BAR
F – ANCHOR NUT

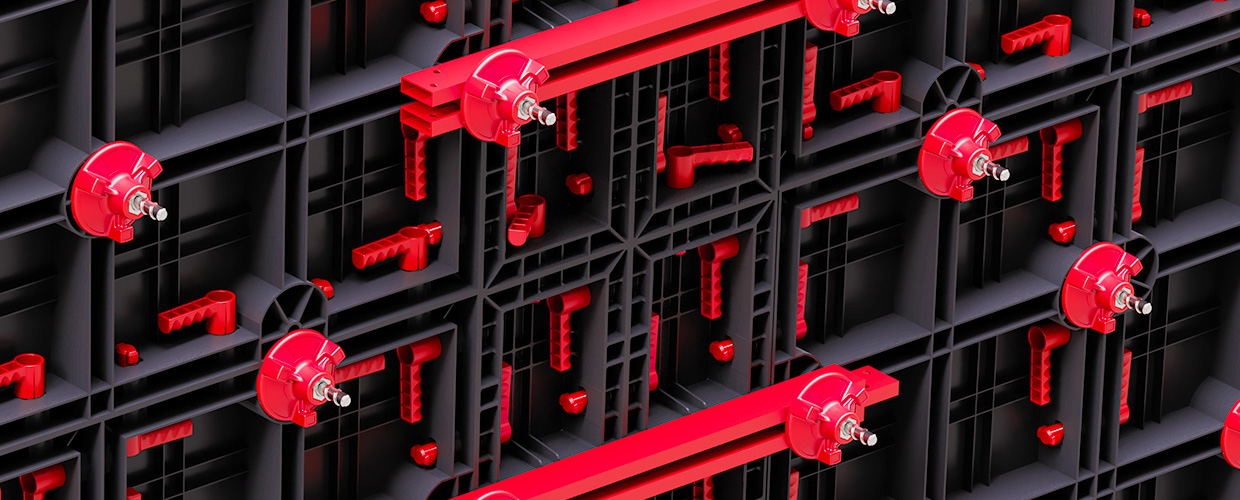

HANDLE ASSEMBLY

Handle insertion



Handle rotation



Handle locked in place

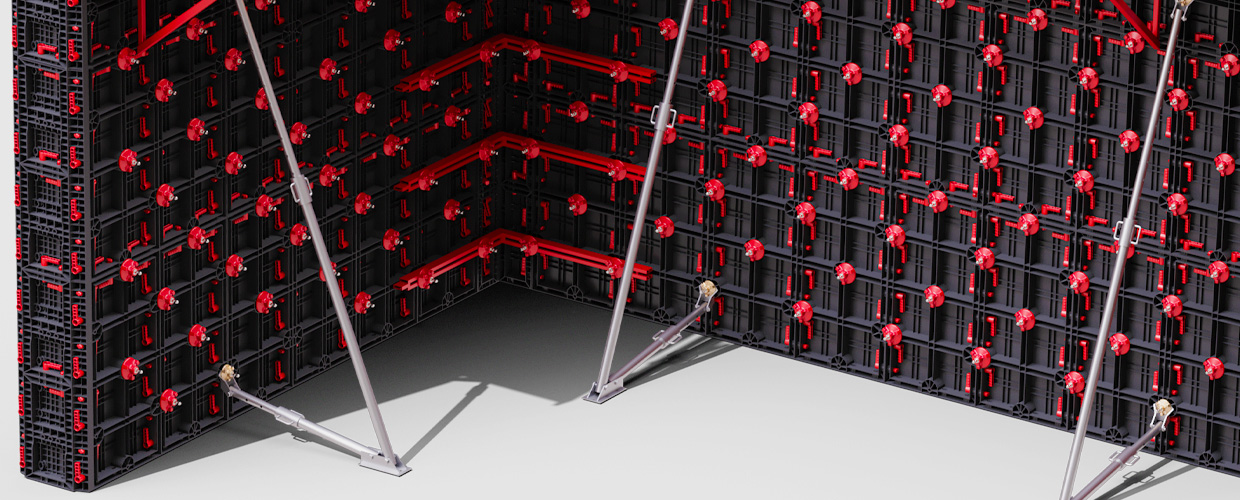

The wide range makes it easy to produce structures of any size and shape. It allows the production of walls of any thickness and height. The wall panels are made of ABS a plastic material very light and easy to handle in the worksite.



The formwork can also be used to build roofs lab systems, stairwells and elevator shafts. The panels’ weight only 11 kg, the installation and the dismantling is very fast. The operations can be repeated quickly in various floors of the building. The wall form manage able size is ideal for the use inside buildings or in other areas of construction that may be inaccessible to lifting devices.



Its main advantages are:



LIGHTNESS: it can be handles without cranes or other mechanical lifting device



REUSABLE: the formwork panels are cost-effective as they can be reused for more than 100 times when properly used and maintained



STACKABLE: the forming system can be safely and conveniently stored even in damp places
