Multimodulo Formwork for ventilated floors

MULTIMODULO is the result of Geoplast’s experience with plastic formwork systems for the construction of ventilated crawl spaces: it includes 4 elements in a single one, thus ensuring high standards of strength both during installation and pour thanks to nine supports for each element.

Advantages

    • REDUCED INSTALLATION TIME AND CONCRETE CONSUMPTION
    • HIGH BEARING CAPACITY OF THE SYSTEM
    • EASIER INSTALLATION OF MEP SYSTEMS


Projects

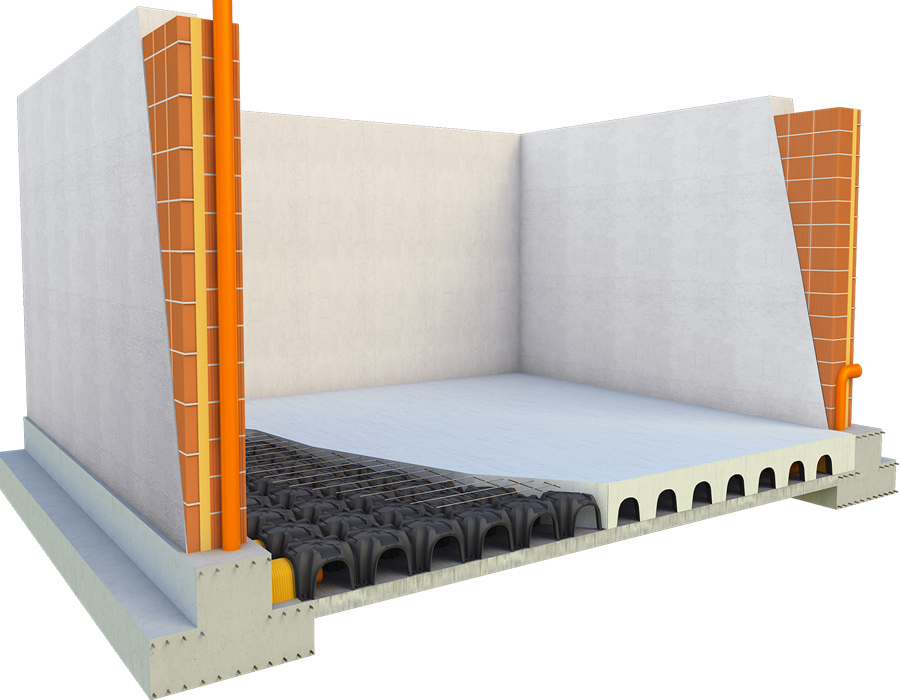

INSTALLATION SCHEME

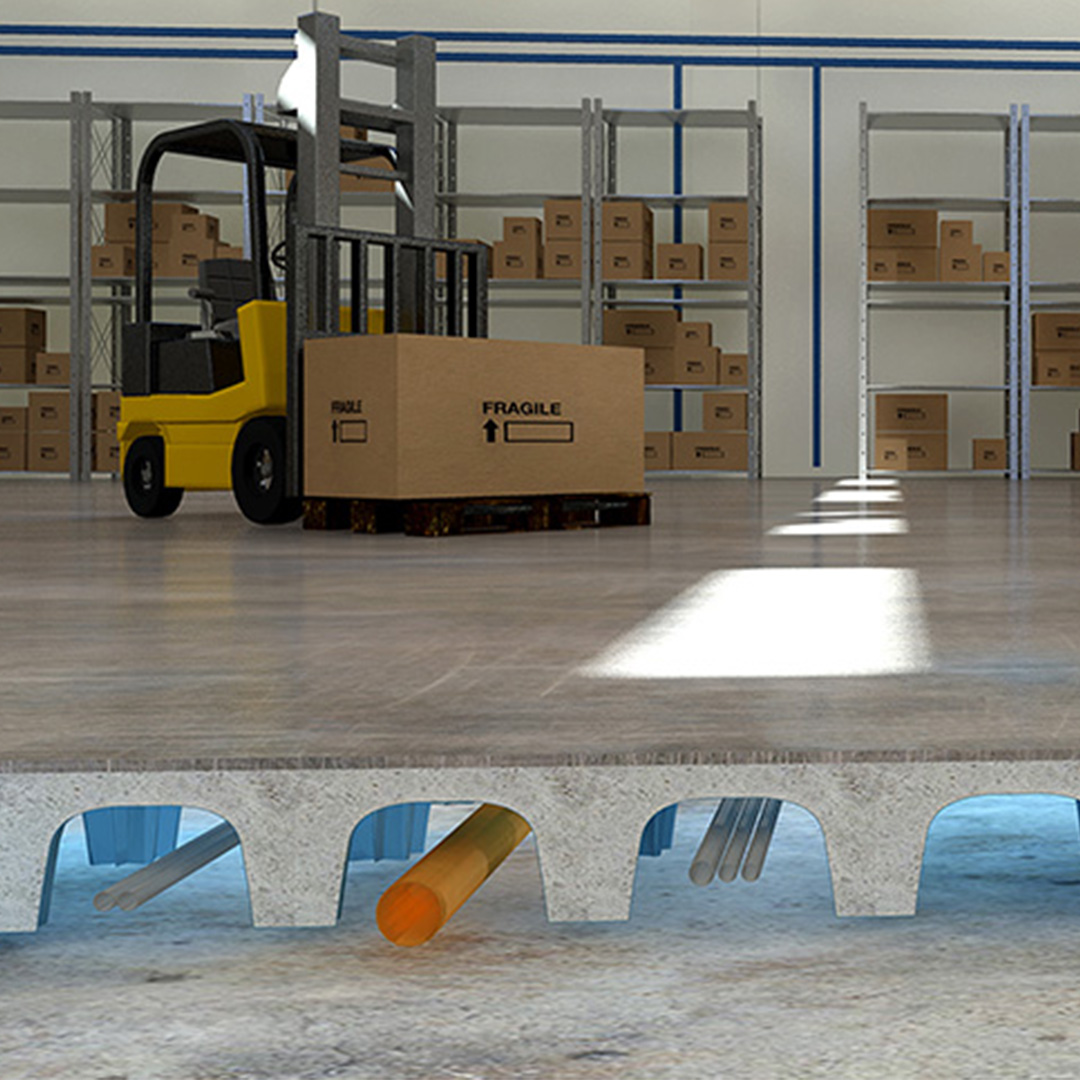

MULTIMODULO is a plastic formwork system that creates a solid ribbed foundation slab that guarantees a high load-bearing capacity, both static and dynamic. Moreover, the ventilated crawl space allows the creation of technical void spaces useful for facilities.



Particularly suitable for industrial buildings, MULTIMODULO also guarantees a fast installation and the creation of a technical void space or a ventilated crawl space. It is ideal for construction of large buildings such as industries or schools.



It offers many advantages:



RADON GAS MITIGATION: the ventilated foundation allows the elimination of naturally accumulated Radon Gas



FAST INSTALLATION: the installation is very fast in respect to traditional systems that use inert materials



ACCESSORIES

Stopend

The STOPEND avoids the flows of of the concrete in the lateral openings and it’s available for MULTIMODULO for sizes from 13 to 40 cm. The combined use of MULTIMODULO, GEOBLOCK and STOPEND permits the obtainment of valuable and technically consistent solutions.

Geoblock

GEOBLOCK is an innovative element that facilitates the installation of MULTIMODULO on site. GEOBLOCK is the adjustable extension which guarantees the possibility to increase the proximity of the perimeter to reduce at the same time concrete consumption. Moreover, thanks to its extensive capability (up to 30 cm) GEOBLOCK is a faster solution compared to manually shaping MULTIMODULO formworks.

Installation Instructions

Faq

Is MULTIMODULO treadable during installation?

Yes, it is. Just follow the recommendations indicated on the form. Only with temperatures above 30° C, it is necessary to be more careful.

How are ventilation stacks installed?

There is no exact calculations or prescriptions related to the required distance. To obtain an effective ventilation it is important to ensure the chimney effect, with the greatest as possible difference in height between north and south and an extended aeration surface. Geoplast Technical Department is in any case available to give all necessary assistance during both design and installation.
