Gripper Outdoor

Modular surface for outdoor sports

Gripper® Outdoor is a modular surface made from 100% recycled plastic, designed for the construction of outdoor sports courts, both temporary and permanent. The flooring system provides safety, comfort, and versatility across numerous sports disciplines, including five-a-side football, tennis, basketball, volleyball, hockey, and many others. Thanks to its perforated structure and Snap-fit interlocking system, Gripper® Outdoor ensures efficient drainage, fast installation, and consistent performance even under challenging weather conditions.

Gripper® Outdoor Sport
Format: 25 × 25 cm
A multi-purpose surface ideal for creating permanent or temporary sports courts. It guarantees rapid drainage, high safety levels, and easy installation. The system is equipped with perimeter ramps for lateral court closure.

Gripper® Outdoor 12”
Format: 30.5 × 30.5 cm
A high-performance multi-purpose solution, particularly suited for five-a-side football and tennis. Laboratory testing classifies it as a fast surface comparable to concrete (ITF 5), making it ideal for advanced players. It also allows the playing area to be visually distinguished using different colors.

Advantages

  • Draining and safe surface
  • The perforated tile design enables rapid rainwater runoff, reducing slip risks and ensuring court usability even after rainfall.
  • Versatile applications
  • Gripper® Outdoor is suitable for a wide range of sports and installation contexts, making it ideal for multisport facilities.
  • High resistance and durability
  • UV-stabilized and engineered to withstand weather exposure, ensuring long-term performance reliability.
  • Fast and easy installation
  • The Snap-fit interlocking system allows for quick, intuitive, and simple assembly, even by non-specialized personnel.
  • Low maintenance
  • The open structure is self-draining and easy to clean, reducing long-term management costs.
  • Sustainable solution
  • Manufactured from 100% recycled plastic, contributing to environmental sustainability and the circular economy.
  • Customizable design

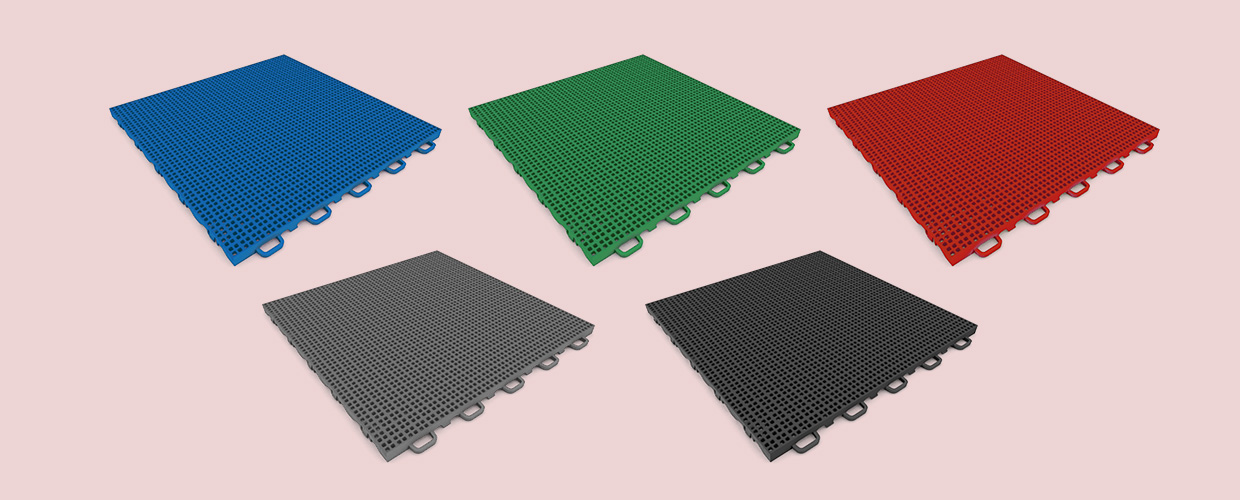

  • Available in multiple colors for tailored court configurations.

Solutions

Gripper® Outdoor Sport
  • Basketball courts
  • Five-a-side football courts
  • Volleyball courts
  • Fitness areas
  • Handball courts
  • Dance surfaces
  Gripper® Outdoor 12”
  • Basketball courts
  • Five-a-side football courts
  • Tennis courts
  • Hockey courts
  • Fitness areas
  • Handball courts
  • Skating surfaces

Projects

Installation Instructions

1-Gripper-installation

1. PREPARATION OF THE SUB BASE LAYER

Cleaning and levelling the surface.

2-Gripper-installation

2. LAYING THE GRIPPER

Drawing pre-assembled sheets together and fast locking system (snap-fit).

3-Gripper-installation

3. COURT BOUNDARY

Laying the guides with paper tapes and making the lines with traffic paint. For temporary events use only a particular adhesive in PVC.

4-Gripper-installation

4. TRACING THE LINES

Tracing lines with traffic paint using a roller or a brush.

5-Gripper-installation

5. EQUIPMENT INSTALLATION

Positioning the equipment leaving few centimeters free on the perimeter and around the supports to allow natural thermal expansion in case of particularly hot days.

6-Gripper-installation

6. COURT READY

ACCESSORIES

Rampa Outdoor Sport RAMPA OUTDOOR SPORT
Size 25 x 3,1 x H 1 cm
Material PP
Coupling Quick with snap-fit
Rampa Double Grid RAMPA DOUBLE GRID
Size 30,5 x 2,5 x H 1,5 cm
Material PP
Coupling Quick with snap-fit
