Gripper Double Grid NEW

Sport court modular surface

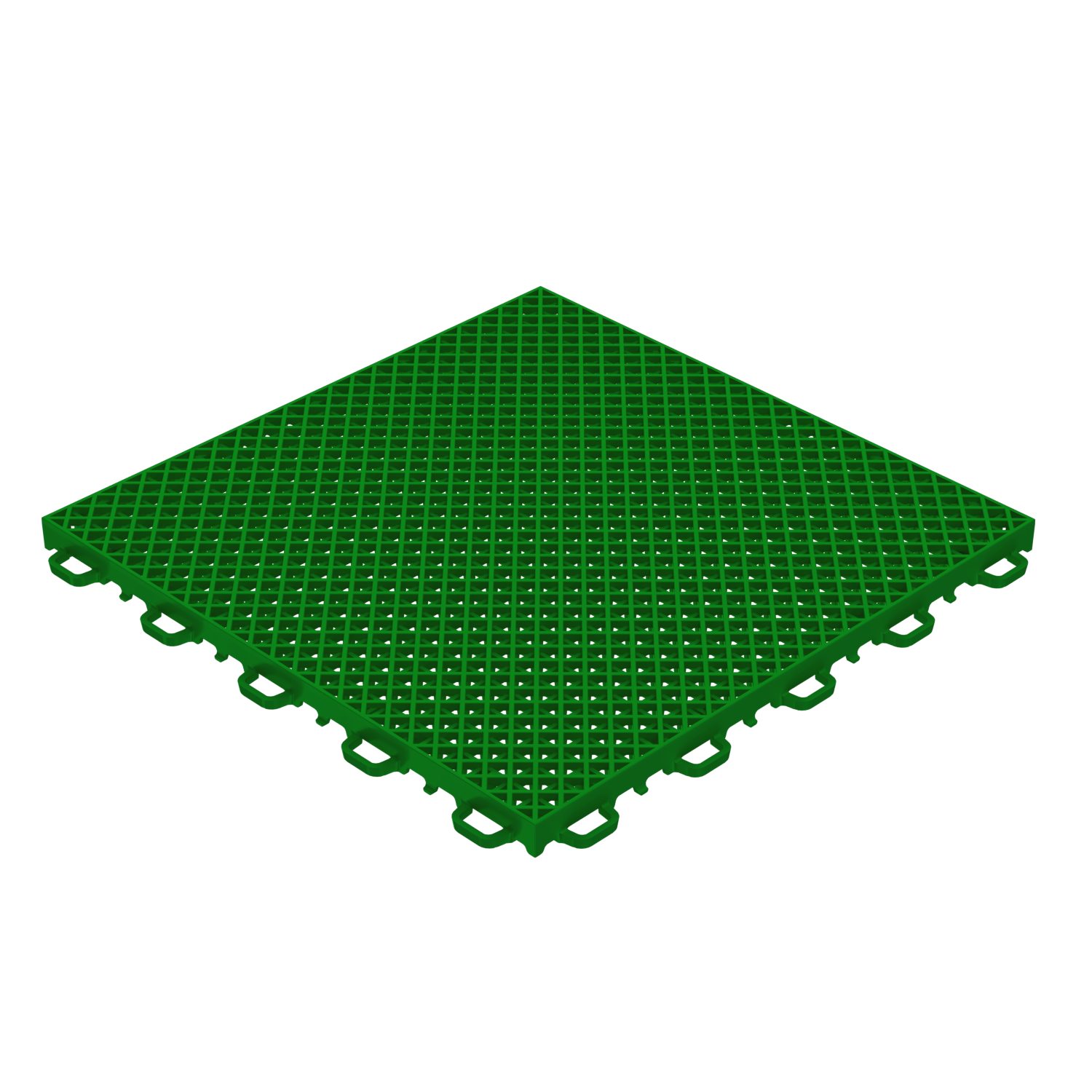

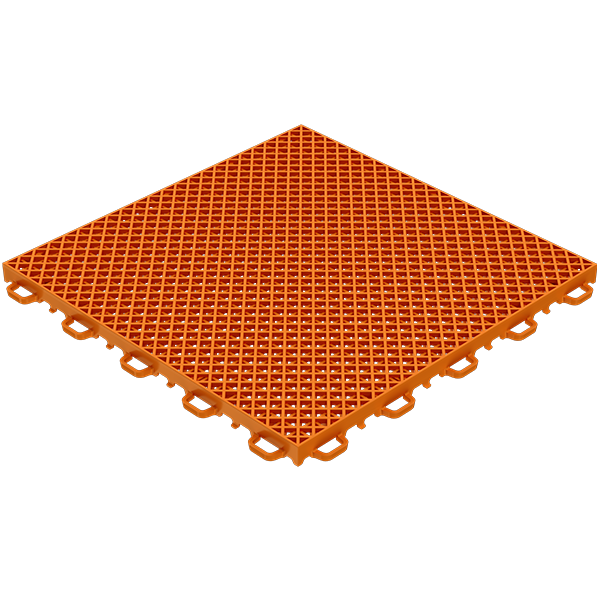

Gripper® Double Grid is a modular sports surface made from 100% recycled plastic and UV-stabilized, designed for high-performance indoor and outdoor sports courts.

The 45° double-cross structure provides excellent mechanical strength, superior grip, and a consistent ball bounce across the entire surface. Gripper® Double Grid features perimeter ramps, is removable and reusable, and its perforated surface promotes efficient rainwater drainage.

The system enables the rapid creation of permanent or temporary courts while ensuring safety, playing comfort, and long-term durability. Thanks to the snap-fit connection system, a 600 m² court can be installed by four people in approximately four hours, without the need for specialized labor. The product is tested in accordance with EN 14877:2013.

Advantages

  • High-performance surface
  • Homogeneous structure and 15 mm thickness ensure playing comfort and athlete safety.
  • Uniform ball bounce
  • Even distribution of support feet guarantees consistent performance.
  • Effective drainage
  • Perforated tile design prevents water stagnation and allows reliable outdoor use.
  • High durability
  • UV-stabilized and engineered to withstand weather exposure, ensuring long-term performance.
  • Versatile applications
  • Ideal for both temporary and permanent courts in schools, public facilities, and private sports areas.
  • Fast and easy installation
  • The Snap-fit connection system enables quick, precise, and intuitive assembly, even by non-specialized personnel.
  • Low maintenance
  • The open structure is self-draining and easy to clean, reducing long-term management costs.
  • Sustainable solution
  • Manufactured from 100% recycled plastic, supporting environmental sustainability and circular economy principles.
  • Customizable design

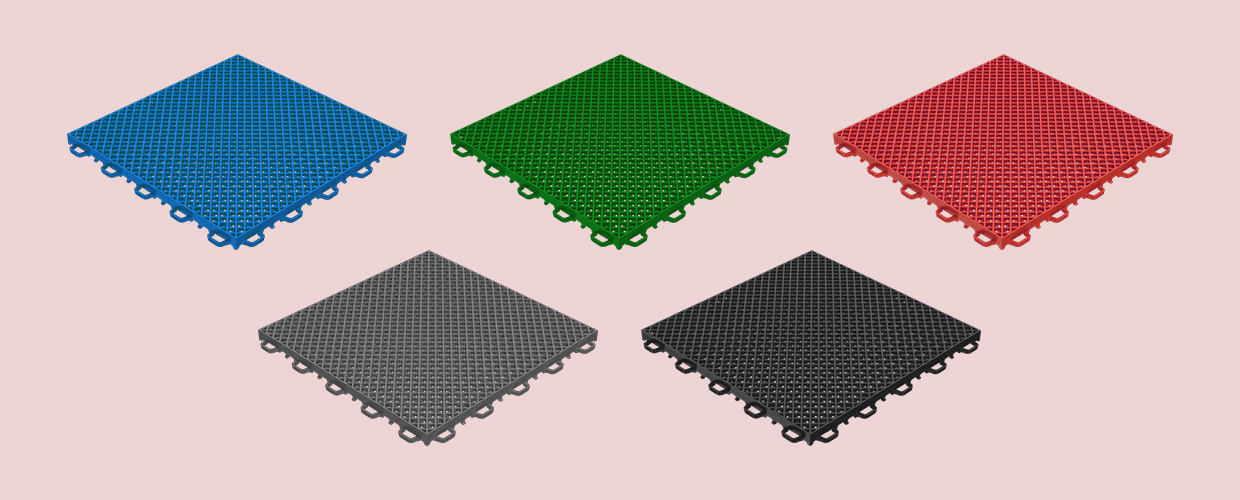

  • Available in multiple colors for tailored court configurations.

Solutions

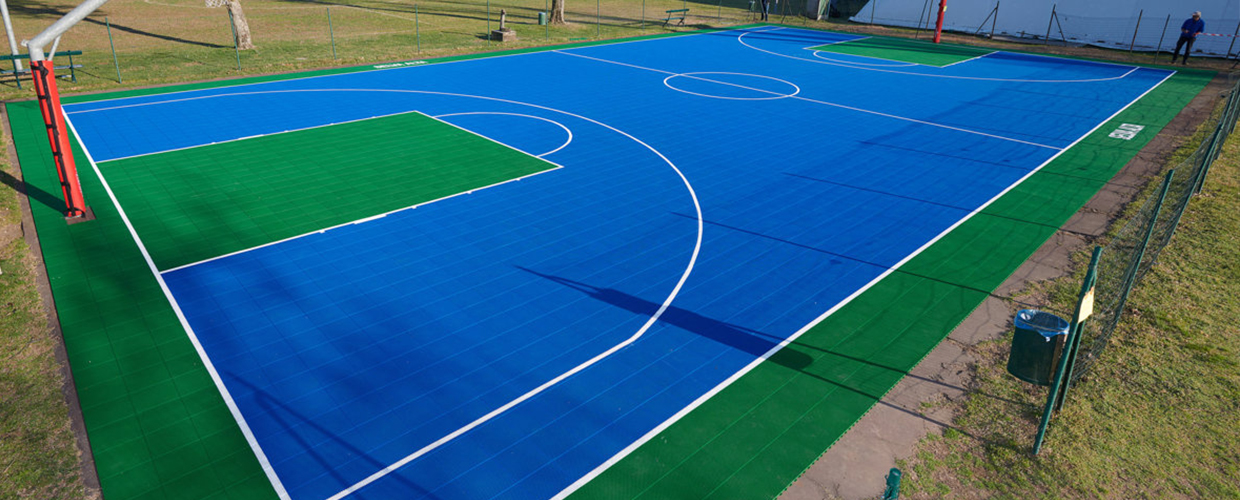

  • Basketball courts
  • Five-a-side football courts

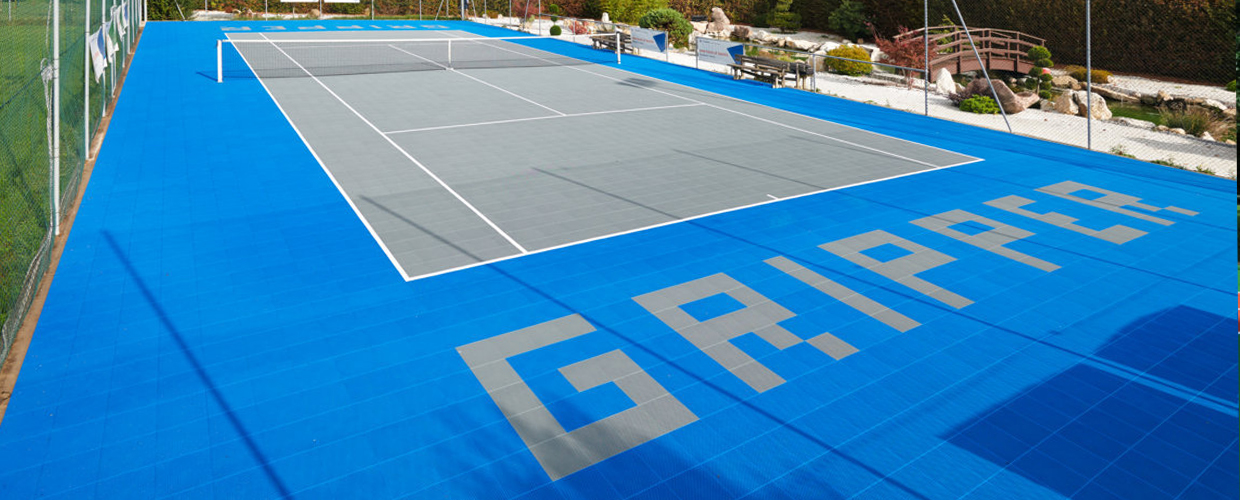

  • Tennis courts
  • Hockey courts
  • Volleyball courts
  • Handball courts
  • Skating rinks
  • Leisure areas
  • Fitness areas

Installation Instructions

1-Gripper-installation

1. PREPARATION OF THE SUB BASE LAYER

Cleaning and levelling the surface.

2-Gripper-installation

2. LAYING THE GRIPPER

Drawing pre-assembled sheets together and fast locking system (snap-fit).

3-Gripper-installation

3. COURT BOUNDARY

Laying the guides with paper tapes and making the lines with traffic paint. For temporary events use only a particular adhesive in PVC.

4-Gripper-installation

4. TRACING THE LINES

Tracing lines with traffic paint using a roller or a brush.

5-Gripper-installation

5. EQUIPMENT INSTALLATION

Positioning the equipment leaving few centimeters free on the perimeter and around the supports to allow natural thermal expansion in case of particularly hot days.

6-Gripper-installation

6. COURT READY

ACCESSORIES

Rampa Double Grid RAMPA DOUBLE GRID
Size 30,5 x 2,5 x H 1,5 cm
Material PP
Coupling Quick with snap-fit
