Geopod is a permanent modular formwork for the construction of waffle raft foundations and ground slabs on expansive clay soils.
Geopod is made of 100 % recycled PP that reduces the use of concrete, making construction projects more sustainably profitable.
The large Geopod module measures 109 x 109 x h30 cm, creating 120 cm spaced ribs that are fully compliant with the Australian Residential Slabs & Footings standard AS 2870-2011.

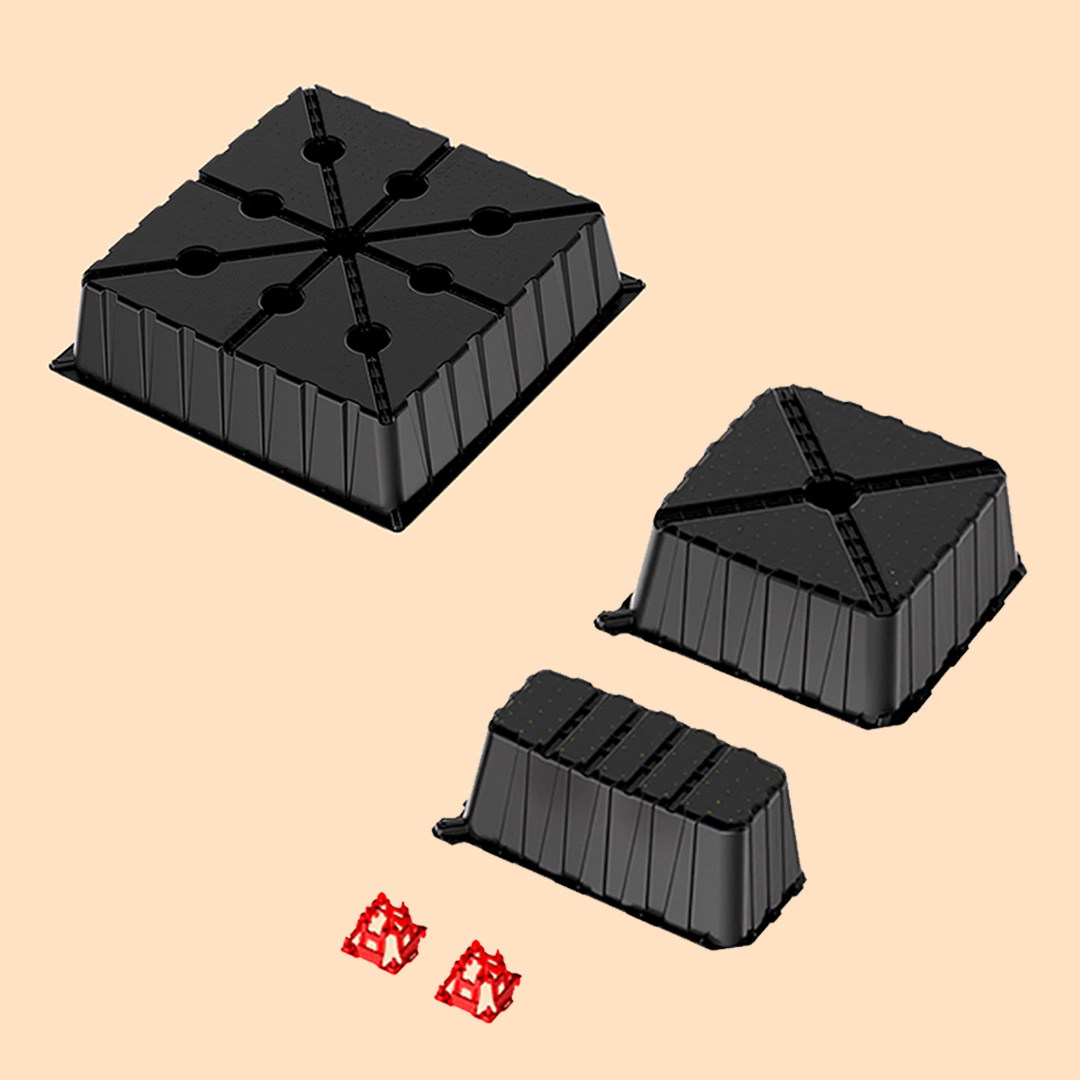

The range also includes Geopod-Midi (1/4 of the main pod) and Geopod-Mini (1/8 of the main pod) for horizontal compensations and adaptability to any worksite.
Geopod is also equipped with spacers that enable a sequential pod setup and fast and easy manual installation.
Geopod’s stackable modules cover a 95 m2 slab surface with a single h180 cm pallet, allowing for reduced and uncomplicated logistics.
Geopod rib centers are spaced at 1200 mm, the maximum size allowed for waffle slabs on the ground according to Australian Standard AS 2870-2011. A larger pod size facilitates faster construction of raft slabs and reduces the use of concrete compared to smaller dome systems.
