Gripper Indoor

Modular surface for indoor sports

Gripper® Indoor is a modular surface made from 100% recycled plastic, designed for the construction of multi-purpose sports courts inside covered facilities.

It ensures safety, comfort, and continuous playability across numerous disciplines, including five-a-side football, tennis, basketball, volleyball, hockey, and other sports activities.

The flooring system retains the versatility and ease of installation typical of the Gripper range and is also available in an outdoor version for exterior applications.

Advantages

  • Smooth and comfortable surface
  • The completely smooth surface, combined with dedicated shock-absorbing underlays, provides excellent play quality and optimal athlete comfort.
  • Impact absorption
  • Installation over a 4 or 5 mm Geocomfort shock pad enhances surface softness, reducing joint stress and improving safety during sports activities.
  • Fast and easy installation
  • The Snap-fit interlocking system enables quick, precise, and intuitive assembly, even by non-specialized personnel.
  • Versatile applications
  • Gripper® Indoor is ideal for both temporary and permanent courts, easily adapting to gyms, sports halls, and multi-functional facilities.
  • Certified performance
  • The surface is tested according to EN 14904:2006, the reference standard for indoor sports flooring.
  • Fire-retardant version available
  • For use in public or regulated environments, Gripper® Indoor is also available in a fire-retardant version, compliant with safety regulations.
  • Sustainable solution
  • Manufactured from 100% recycled plastic, the flooring contributes to reduced environmental impact and promotes sustainable construction solutions.
  • Customizable design

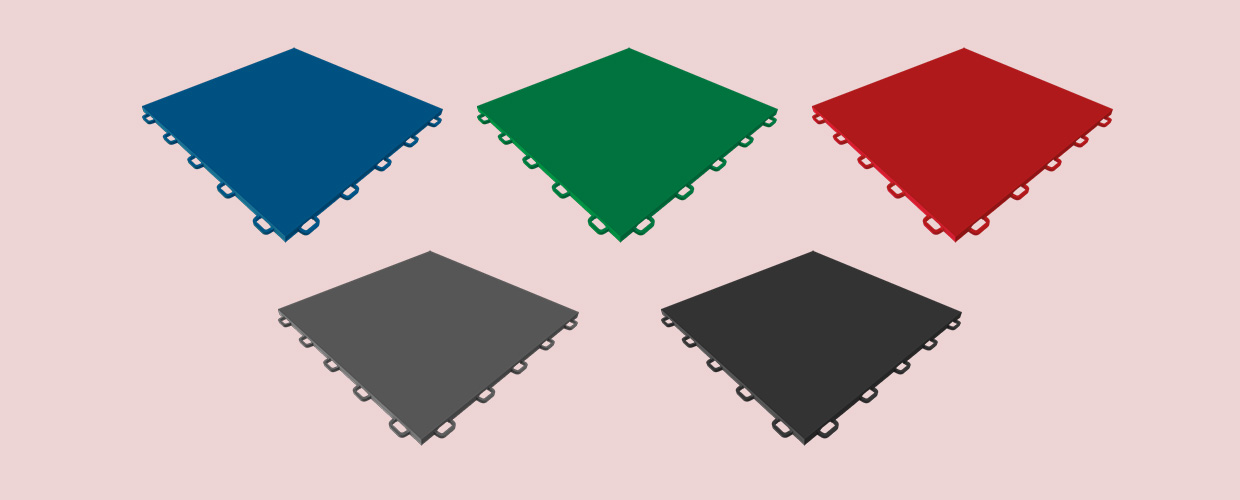

  • Available in multiple colors for tailored court configurations.

Solutions

  • Basketball courts
  • Five-a-side football courts
  • Tennis courts
  • Volleyball courts
  • Hockey courts
  • Fitness areas
  • Handball courts
  • Skating surfaces
  • Dance surfaces
  • Multisport activities in gyms and sports halls

Installation Instructions

1-Gripper-installation

1. PREPARATION OF THE SUB BASE LAYER

Cleaning and levelling the surface.

2-Gripper-installation

2. LAYING THE GRIPPER

Drawing pre-assembled sheets together and fast locking system (snap-fit).

3-Gripper-installation

3. COURT BOUNDARY

Laying the guides with paper tapes and making the lines with traffic paint. For temporary events use only a particular adhesive in PVC.

4-Gripper-installation

4. TRACING THE LINES

Tracing lines with traffic paint using a roller or a brush.

5-Gripper-installation

5. EQUIPMENT INSTALLATION

Positioning the equipment leaving few centimeters free on the perimeter and around the supports to allow natural thermal expansion in case of particularly hot days.

6-Gripper-installation

6. COURT READY

ACCESSORIES

Gripper Indoor Geocomfort GEOCOMFORT 4 mm GEOCOMFORT 5 mm
Size 20 x 1 m (tick. 4 mm) 16 x 1 m (tick. 5 mm)
Weight 3.00 kg/m² 3.75 kg/m²
Material PFU rubber linked by polyurethanes
Packaging size 80 x 120 x H 120 cm - 160 m² 80 x 120 x H 120 cm - 128 m²
