GEOPANEL STAR

Creation of columns, plinths and concrete walls

GEOPANEL STAR is a modular and reusable formwork system made of high resistance ABS. It also permits the infilling of columns, plinths and reinforced concrete walls.

Geopanel Star

Advantages

  • 1. It is possible to realize different sizes columns with the same panels
  • 2. high resistance (80 kn/m2) and duration of the panels
  • 3. no mechanical means needed to move it



Installation Instructions

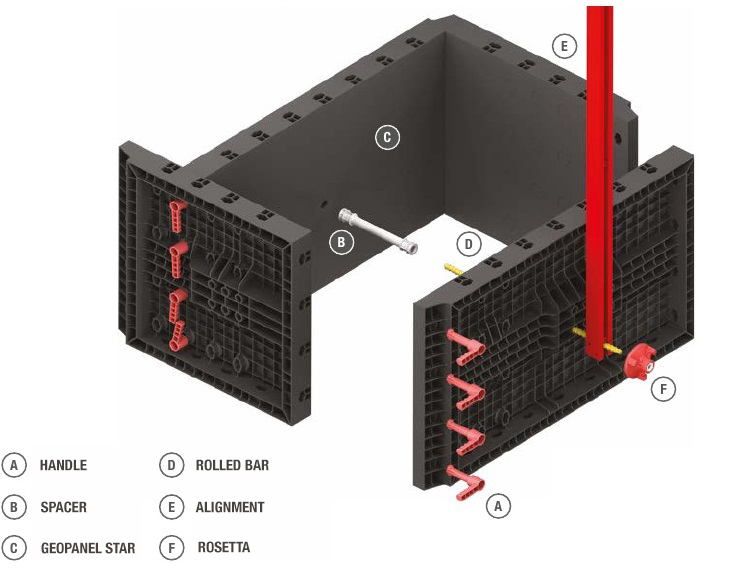

Geopanel Star assembly process









A – HANDLE
B – SPACER
C – GEOPANEL STAR
D – TIE ROD
E – ALIGNMENT BAR
F – ANCHOR NUT



HANDLE ASSEMBLY

Geopanel Star handle insertion

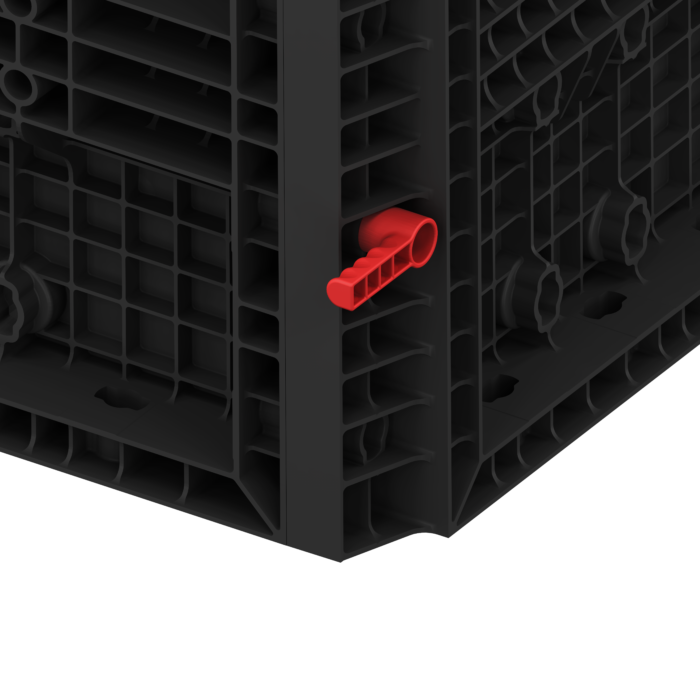

Geopanel Star handle rotation

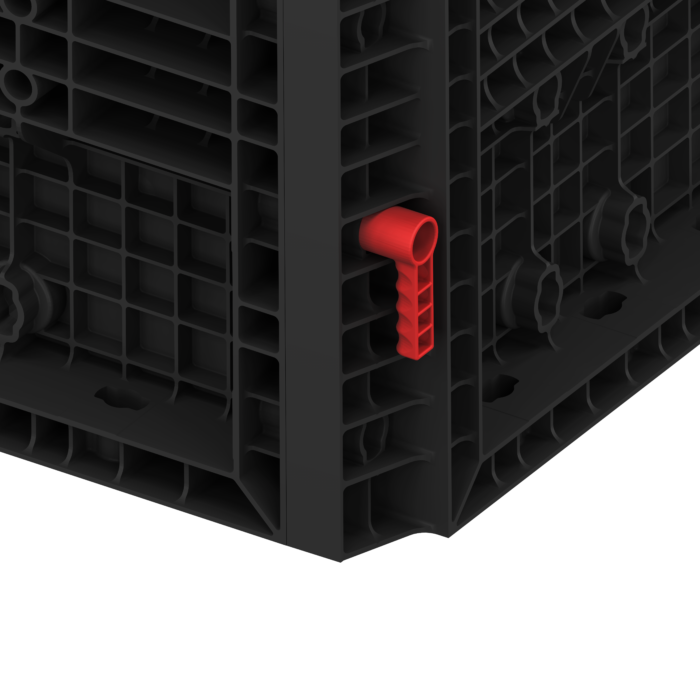

Geopanel Star handle in place
