Drening Reflue Data
Technical Data
|
DRENING |
| Dimensions (cm) | 120 x 80 x H40 |
| Length once installed (cm) | 117 |
| Material | Graplene (Recycled Polypropylene Compound) |
| Volume (I) | 310 |
| Lateral infiltration surface (cm2) | 2.800 |
| Package size (cm) | 120 x83 x H245 |
| No. units per pallet | 40 |
| Product code | EDRENPP0040 |
|
DRENING CAP |
| Dimensions (cm) | 70 x 40 |
| Thickness | 6 |
| Material | Graplene (Recycled Polypropylene Compound) |
| No. units per pallet | 100* |
| Product code | ETAPDPP0040 |
| * Each palet of Drening can contain up to 10 pcs. Drening cap | |
Installation
To do a proper place it’s sufficient to follow the directions below:
- Dugout excavation depth: 90-100 cm, at least 90 cm wide at the base, with wall inclination considering the soil nature;
-
Evaluation of the geological peculiarities of the ground. If the ground is particularly soft or barely draining, the dugout bed should be filled with gravel, grain size 20-40 mm, height 10 cm circa;
-
Installation of DRENING in the centre of the dugout, slope 0.5% circa;
-
insertion of the ventilation pipe over the DRENING® top to permit the survival of aerobics bacterias;
-
DRENING backfilling and covering with residual soil (or gravel, grain size: 20-40 mm);
-
Total covering of the dugout up to the country share with residual soil and possible seeding.

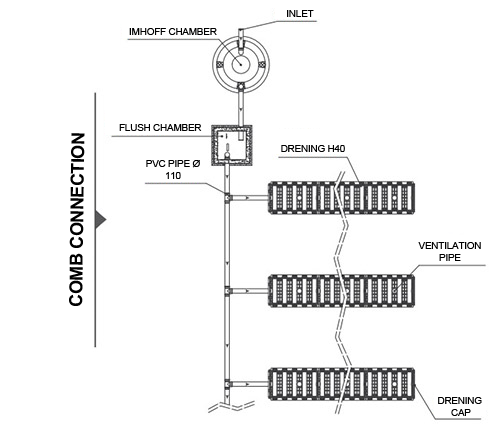

Scheme
Symmetrical
connection
Symmetrical connection
Ventilation system
Aerobic disposal systems do not cause bad smell
Dugout ventilation is fundamental to avoid the disposal processes with anaerobic bacterias that may produce fragrant substances.
Installation on the slopping terrain
SOLUTION N° 1
Dugouts have a serpentine connection with the pipe that is inserted over the caps of leading and tailing of each DRENING line.
SOLUTION N° 2
Dugouts are connected with a singular pronged pipe, inserted on the top of each DRENING line.
