PLASTONELLA is a molded panel made of polypropylene resistant to UV rays and chemical agents.
MATERIAL
Polypropylene resistant to UV rays (PP)
SIZES (cm)
40,8 x 40,8 x H5
LOAD CAPABILITY (t/mq)
3
COLOR
Terracotta – Grey – Green
WEIGHT (Kg)
0,94
PACKAGING SIZE (cm)
83 x 125 x H230
N. PCS.
270
MQ PER PALLET
45
TYPES OF COUPLING
Bayonet coupling
Installation
Installation method

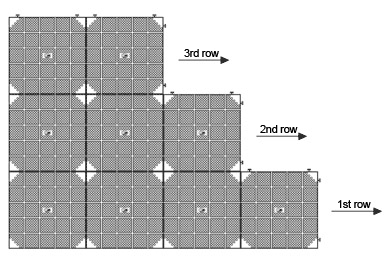

Plastonella tiles needs to be placed from left to right and from bottom to top, mantaining the hooks upwards and to the right. Standard sizes of 40,8 X 40,8 cm che that allow a perfect modularity even on irregular surfaces. STORAGE: After the use it can be unhooked and storaged even in moist places as it light, handy and resistant to mircoorganisms and to any chemical agent.
PLACE ON-SITE WITH SPECIFIC FEET– Protection waterproofing
1
Place the feet as the image shows and overturn the tile placing the feet on the ground;
2
Place the side and upper feet as the image shows; the feet are provided with a larger groove in order to be hooked to side by side tiles.
