GEOTUB
–Technical chart
GEOTUB® Panel is a formwork made of ABS plastic material, resistant to UV rays and chemical agents.
Geotub Data
Technical chart and Package
| GEOTUB | ø 25 cm | ø 30 cm | ø 35 cm | ø 40 cm | ø 45 cm | ø 50 cm | ø 60 cm | ø 70 cm | ø 80 cm | ø 90 cm | ø 100 cm |
| MATERIAL |
ABS |
||||||||||

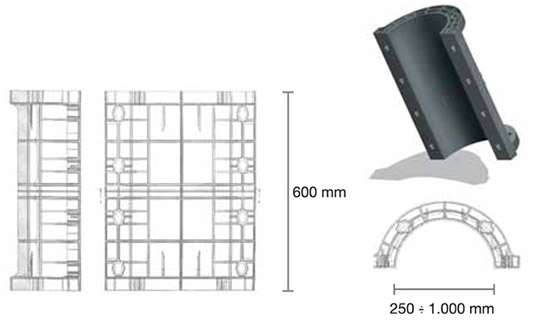

| Internal diameter | 250 mm | 300 mm | 350 mm | 400 mm | 450 mm | 500 mm | 600 mm | 700 mm | 800 mm | 900 mm | 1000 mm |
| Single panel height | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Max height of the single pour | 6 m | 6 m | 6 m | 6 m | 4,8 m | 4,8 m | 4,8 m | 3,6 m | 3,6 m | 3,6 m | 3,6 m |
| Package dim.(cm) | pallets dim. 81x121xh220 | pallets dim. 81x121xh245 | pallets dim. 104x121xh225 | pallets dim. 114x121xh192 | pallets dim. 121x123xh235 | pallets dim. 80x121xh211 | pallets dim. 80x121xh236 | pallets dim. 87x121xh235 | pallets dim. 100x121xh227 | pallets dim. 100x121xh243 | pallets dim. 120x121xh231 |
| Nr. pieces per pallet | 60 | 60 | 50 | 40 | 48 | 20 | 20 | 18 | 16 | 16 | 14 |
GEOTUB® Panel – Installation
GEOTUB® Panel is a modular formwork in ABS plastic material, resistant to UV rays and chemical agents. The forms are very light and can be handled manually and installed by a single person. The product can be re-used for +100 times.
The internal smoothness of the formwork and the quality of the material guarantee a pleasant look and allow an easy installation and dismantling without any releasing agent. After the pour, remove any external deposit of concrete and clean the product with water. The single forming elements are quickly and easily joined using the standard high-strength nylon fastening handles.
For a quick and correct installation of Geotub formwork, please follow these steps:
All fixing handles must be fastened to ensure the required strength of the formwork. The rotation direction of the handles does not affect their strength.
