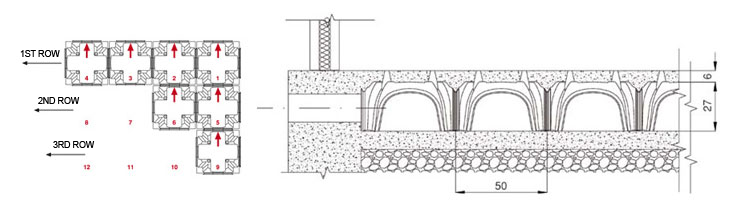

BIOMODULO is a plastic modular and self-supporting element, 27 cm high provided with 4 special height diffusers for the creation of foundations and air spreading and distribution perforated floors. They are made of concrete and heavy means can transit over them.
|Sizes||50 x 50 x H33 cm||50 x 50 x H37 cm|
|Nozzles height||6 cm||10cm|
|Free span height||21 cm||21 cm|
|Free span lenght||34 cm||34 cm|
|ø max pipes (1)||200 mm||200 mm|
|ø max two pipes (2)||160 mm||160 mm|
|Cosumption of Concrete at edge of the nozzles||0,1 m3/m2||0,14 m3/m2|
|Packaging Size (cm)||103 x 103 x 245||103 x 103 x 255|
|N° pz. per pallet||300||300|
|m2 per pallet||75||75|
Workers can walk on BIOMODULO even before the final concrete casting, thanks to it being realized with a mix of regenerated plastic materials which are atoxic, and highly resistant.
|Top concrete slab thickness||6 cm|
|Lean concrete thickness||10 cm|
|Gravel pressure||5,66 kg/cm2|
|Gravel thickness||25 cm|
|Pressure on the ground||0,49 kg/cm2|
|ø bars||6/8 mm|
|Netting mesh||20 x 20 cm|
Thanks to the homogeneous and regular air distribution and self-supporting capacity of the finished floor, BIOMODULO facilitates the realization of aerobic stabilization sections and of composting systems for the treatment of domestic and agro-food waste but it also realizes biological deodorizing bio-filters to eliminate the organic smells.
BIOMODULO is walkable even before the finishing cast and it is realized with a mixture of regenerated plastic materials, atoxic and highly resistant which remains unchanged over time.
