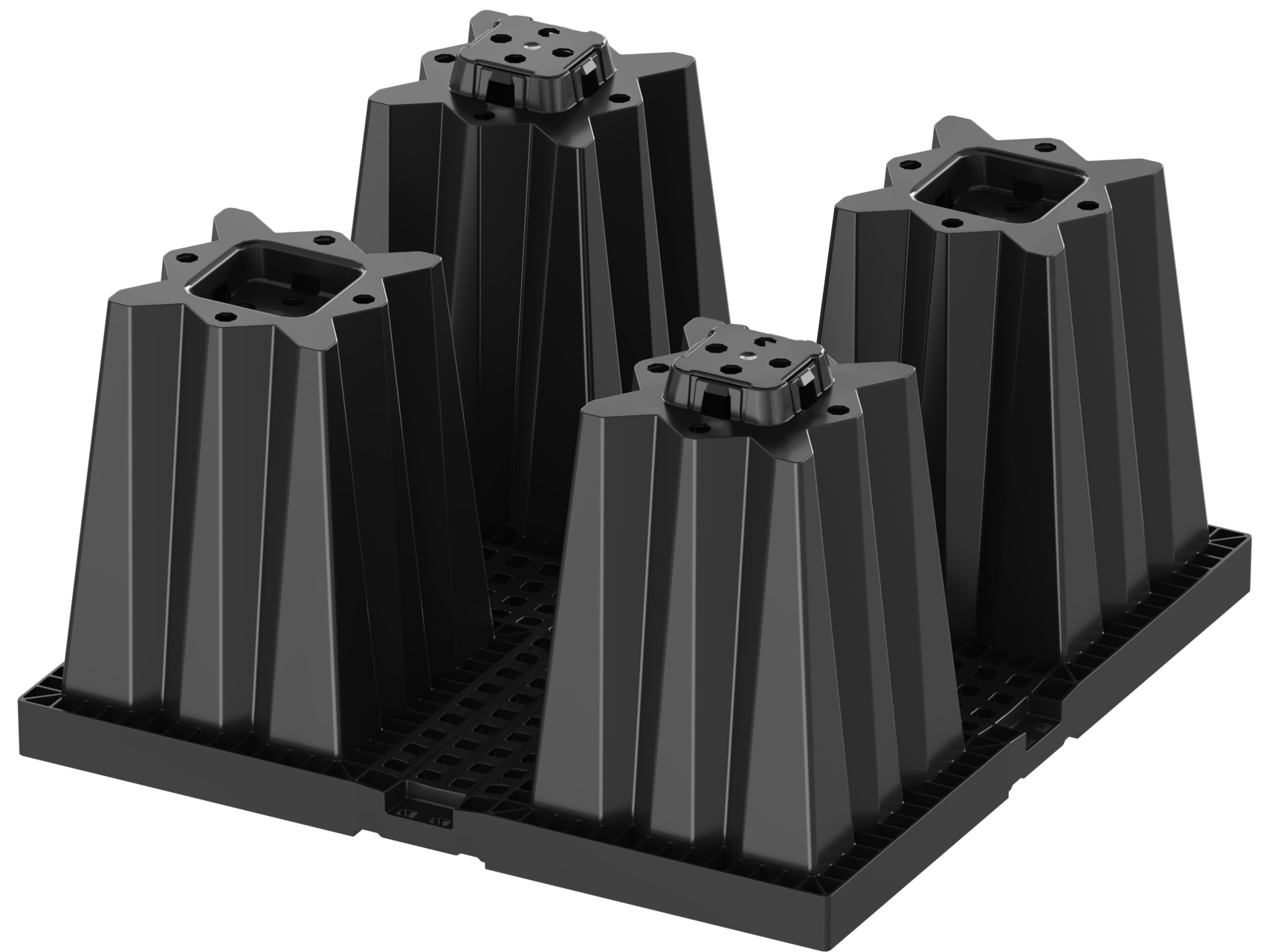

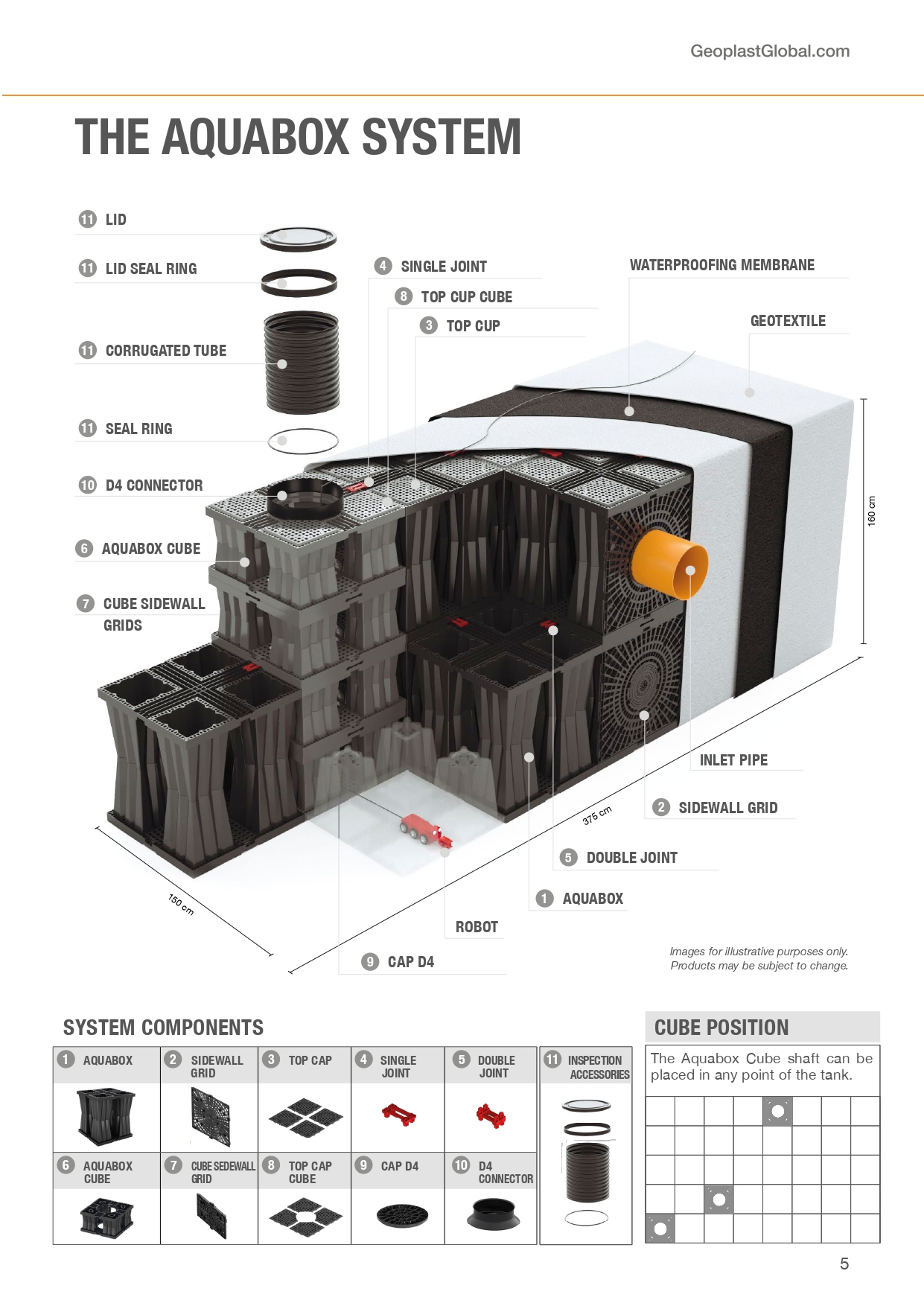

AQUABOX HPR |
AQUABOX HP |
AQUABOX STR |
AQUABOX ST |
| Dimensions (cm) | 75 x 75 x H43 | |||
| Material | Graplene VNFV 15 | Graplene FV 15 | Graplene FV 5 | Graplene |
| Net storage volume (l/pcs) | 216 | |||
| Void ratio | 96% | |||
| Package size (cm) | 80 x 152 x H258 | |||
| No. pieces | 80 | |||
| Product code | EDAQUVE1540 | EDAQUFV1540 | EDAQUFV0540 | EDAQUAB0400 |
|

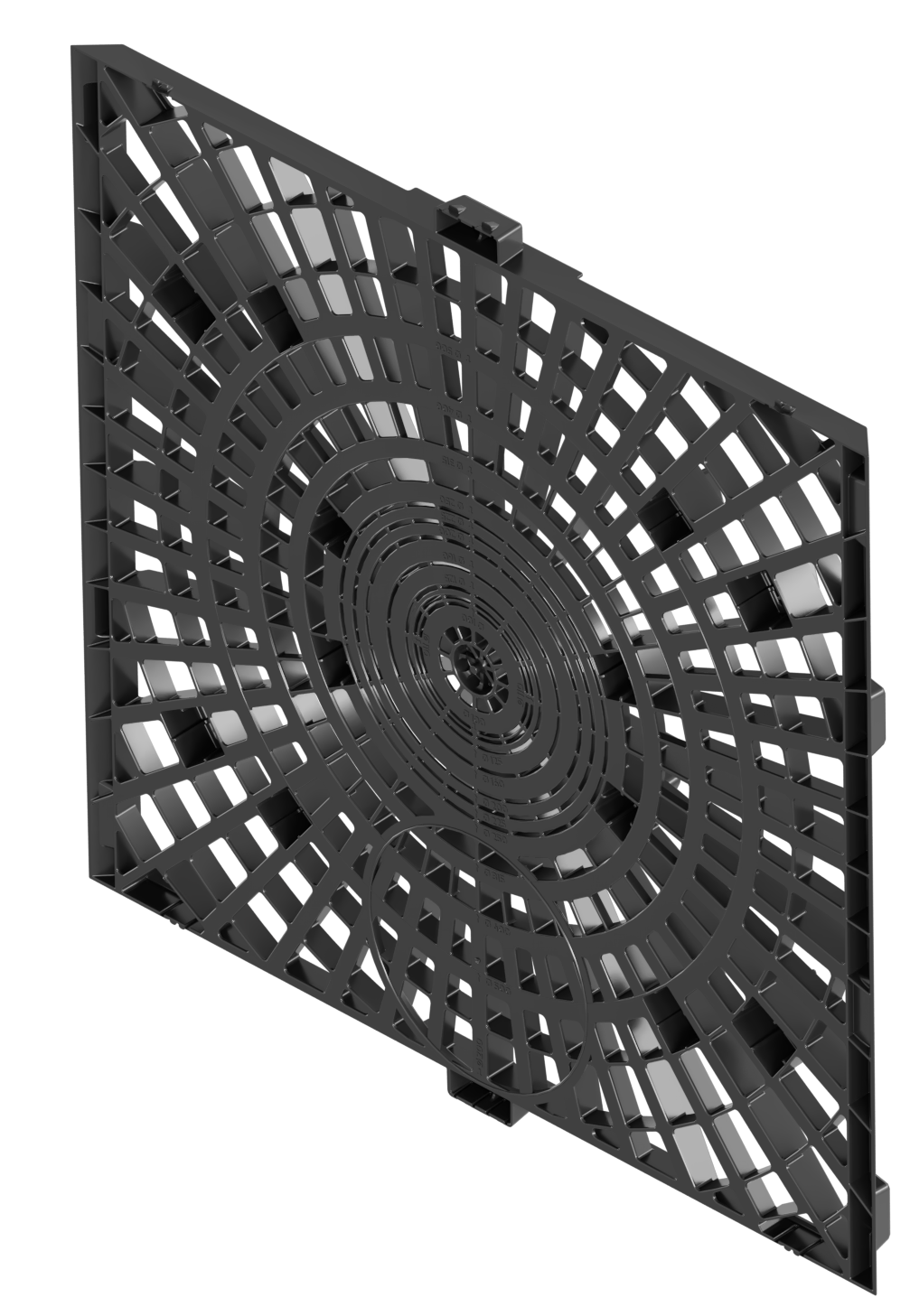

SIDEWALL GRID HPR |
SIDEWALL GRID HP |
SIDEWALL GRID STR |
SIDEWALL GRID ST |
| Dimensions (cm) | 75 x 75 x H3,3 | |||
| Material | Graplene VNFV 15 | Graplene FV 15 | Graplene FV 5 | Graplene |
| Connection (DN/OD) | 100, 110, 125, 160, 200, 225, 250, 315, 400, 500 | |||
| Package size (cm) | 80 x 152 x H255 | |||
| No. pieces | 140 | |||
| Product code | EDAQSWVE033 | EDAQSWGV033 | EDAQSWFV033 | EDAQSWG0033 |
|

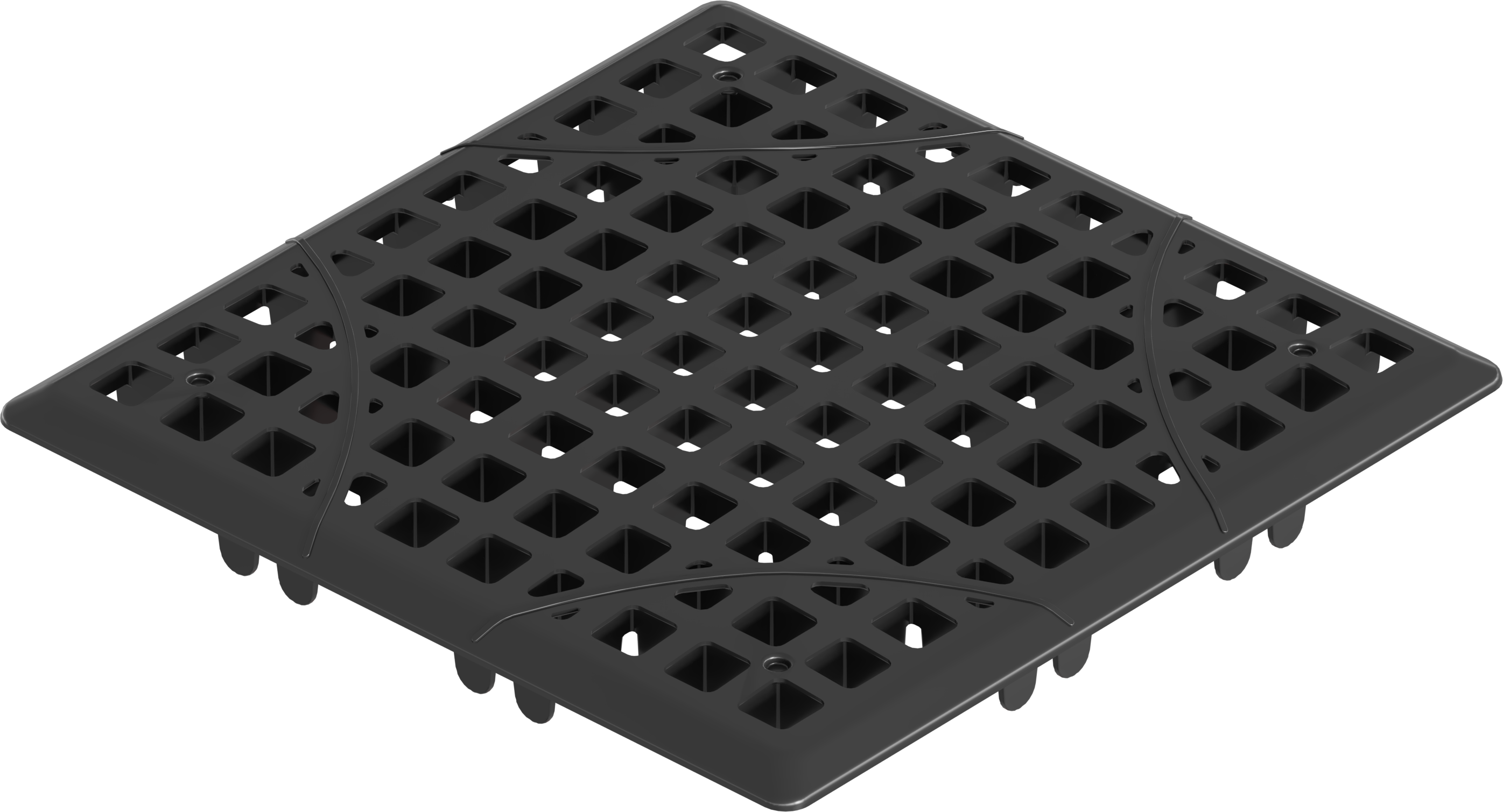

HPR TOP CAP |
HP TOP CAP |
STR TOP CAP |
ST TOP CAP |
| Dimensions (cm) | 28,4 x 28,4 x H2,5 | |||
| Material | Graplene VNFV 15 | Graplene FV 15 | Graplene FV 5 | Graplene |
| Package size (cm) | 90 x 120 x H255 | |||
| No. pieces | 1200 | |||
| Product code | EDAQTFV1524 | EDAQTOCV024 | EDAQTFV0524 | EDAQTOC0024 |
|

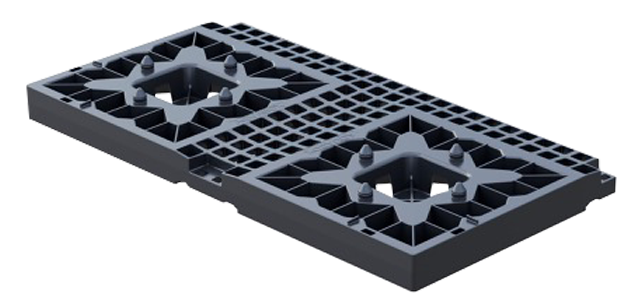

HALF BASE |
| Dimensions (cm) | 75 x 37,5 x H5 |
| Material | Graplene FV15 |
| Colour | Black |
| No. pieces per pallet | 144 |
| Product code | EDAQBHB3775 |
|

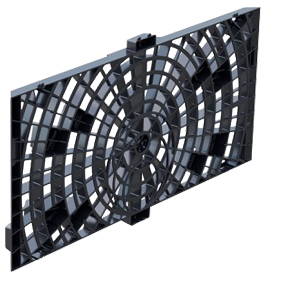

HALF GRID |
| Dimensions (cm) | 75 x 35 x H2,5 |
| Material | Graplene FV15 |
| Colour | Black |
| No. pieces per pallet | 237 |
| Product code | EDAQHSB0035 |
|

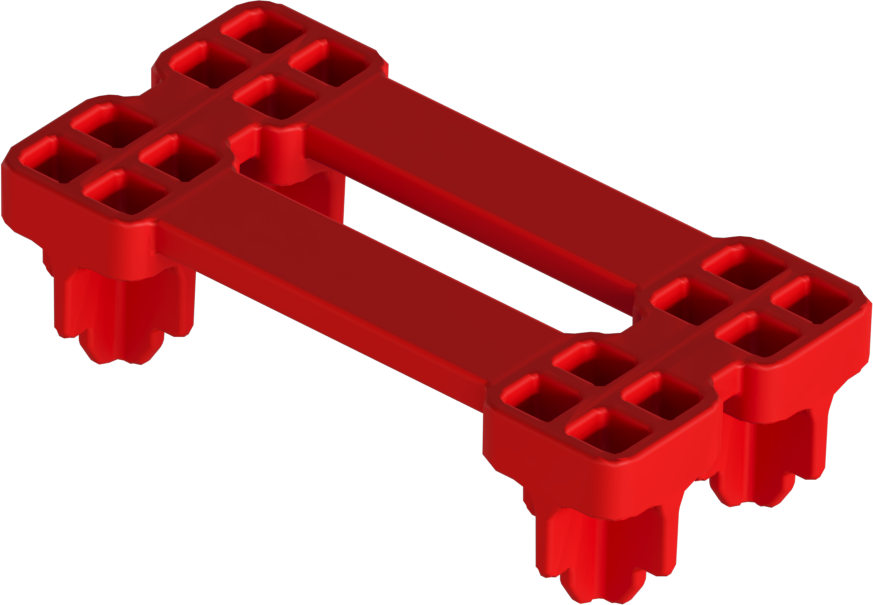

SINGLE JOINT |
| Dimensions (cm) | 12 x 7 x H3,5 |
| Material | Graplene VN |
| Colour | Red |
| No. pieces per bag | 400 |
| Product code | EDAQJOI0035 |
|

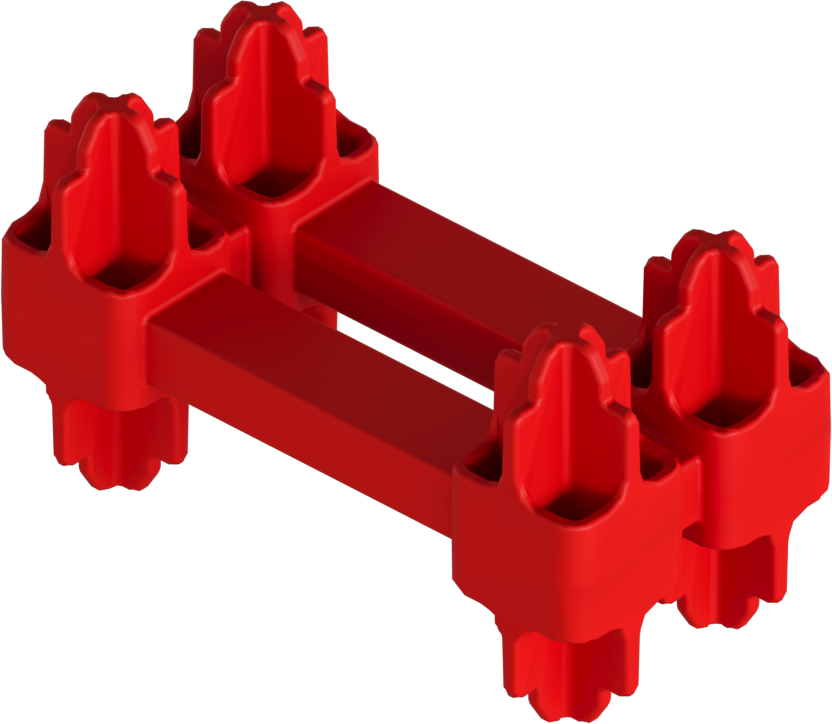

DOUBLE JOINT |
| Dimensions (cm) | 12 x 7 x H7 |
| Material | Graplene VN |
| Colour | Red |
| No. pieces per bag | 300 |
| Product code | EDAQDOJ0070 |
|

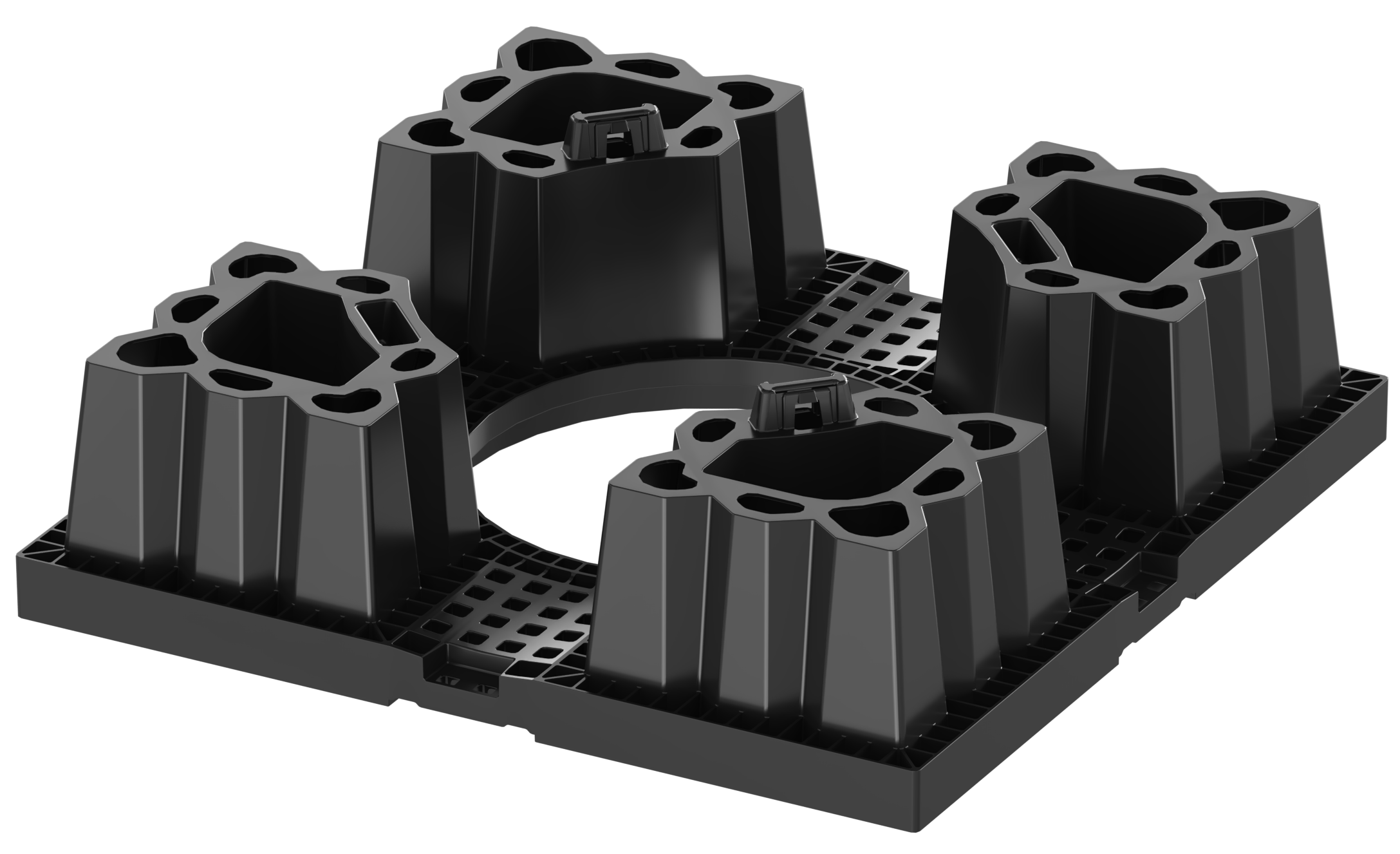

AQUABOX CUBE HPR |
AQUABOX CUBE HP |
AQUABOX CUBE STR |
AQUABOX CUBE ST |
| Dimensions (cm) | 75 x 75 x H23 | |||
| Material | Graplene VNFV 15 | Graplene FV 15 | Graplene FV 5 | Graplene |
| Net storage volume (l/pcs) | 106 | |||
| Void ratio | 94% | |||
| Package size (cm) | 80 x 152 x H250 | |||
| No. pieces | 88 | |||
| Product code | EDAQUVE0200 | EDAQUBCV200 | EDAQUFV0200 | EDAQUBC0200 |
|

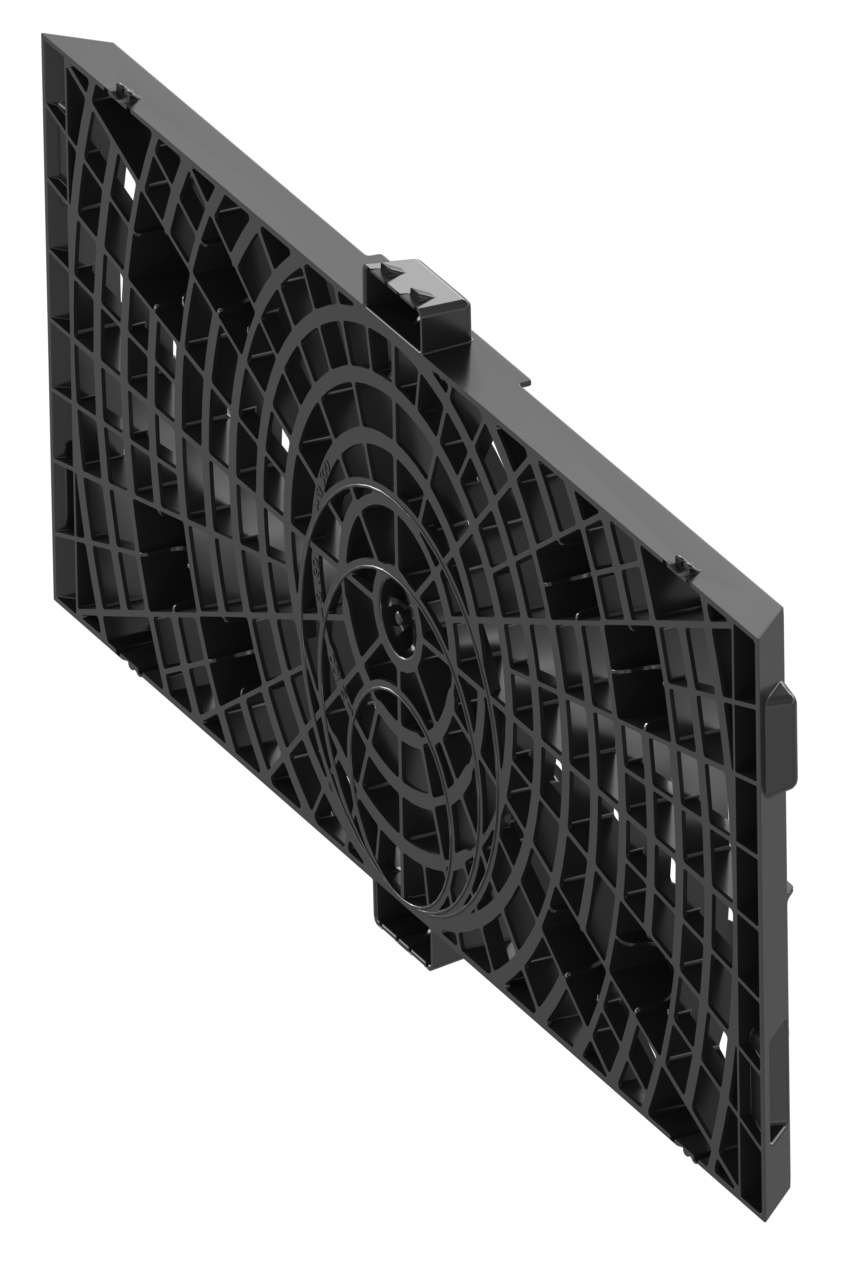

SIDEWALL GRID CUBE HPR |
SIDEWALL GRID CUBE HP |
SIDEWALL GRID CUBE STR |
SIDEWALL GRID CUBE ST |
| Dimensions (cm) | 74,6 x 29,6 x H2,6 | |||
| Material | Graplene VNFV 15 | Graplene FV 15 | Graplene FV 5 | Graplene |
| Connection (DN/OD) | 100, 160, 200 | |||
| Package size (cm) | 80 x 120 x H260 | |||
| No. pieces | 280 | |||
| Product code | EDAQUVE0026 | EDAQSWGV026 | EDAQUFV0026 | EDAQSWG0026 |
|

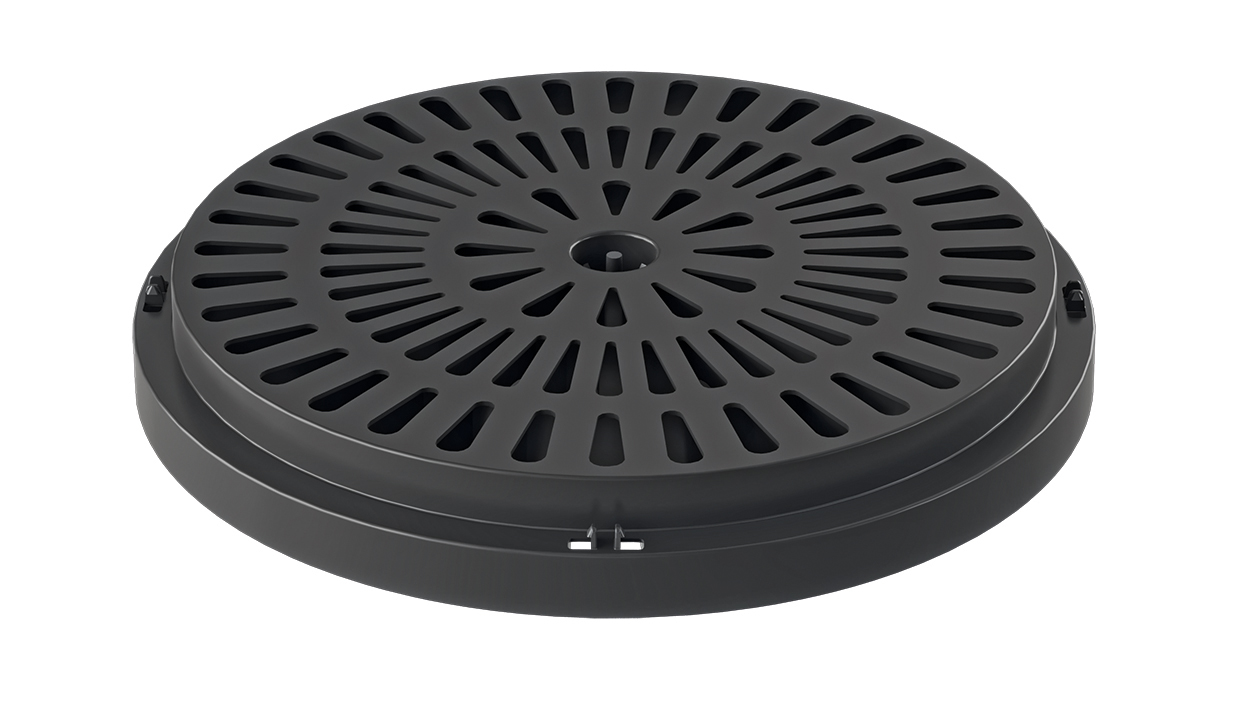

D4 HPR CAP |
D4 HP CAP |
D4 STR CAP |
D4 ST CAP |
| Dimensions (cm) | Ø40 | |||
| Material | Graplene VNFV 15 | Graplene FV 15 | Graplene FV 5 | Graplene |
| Package size (cm) | 82 x 122 x H258 | |||
| No. pieces | 312 | |||
| Product code | EDAQCVE0400 | EDAQCCDV400 | EDAQUFV0400 | EDAQCCD0400 |

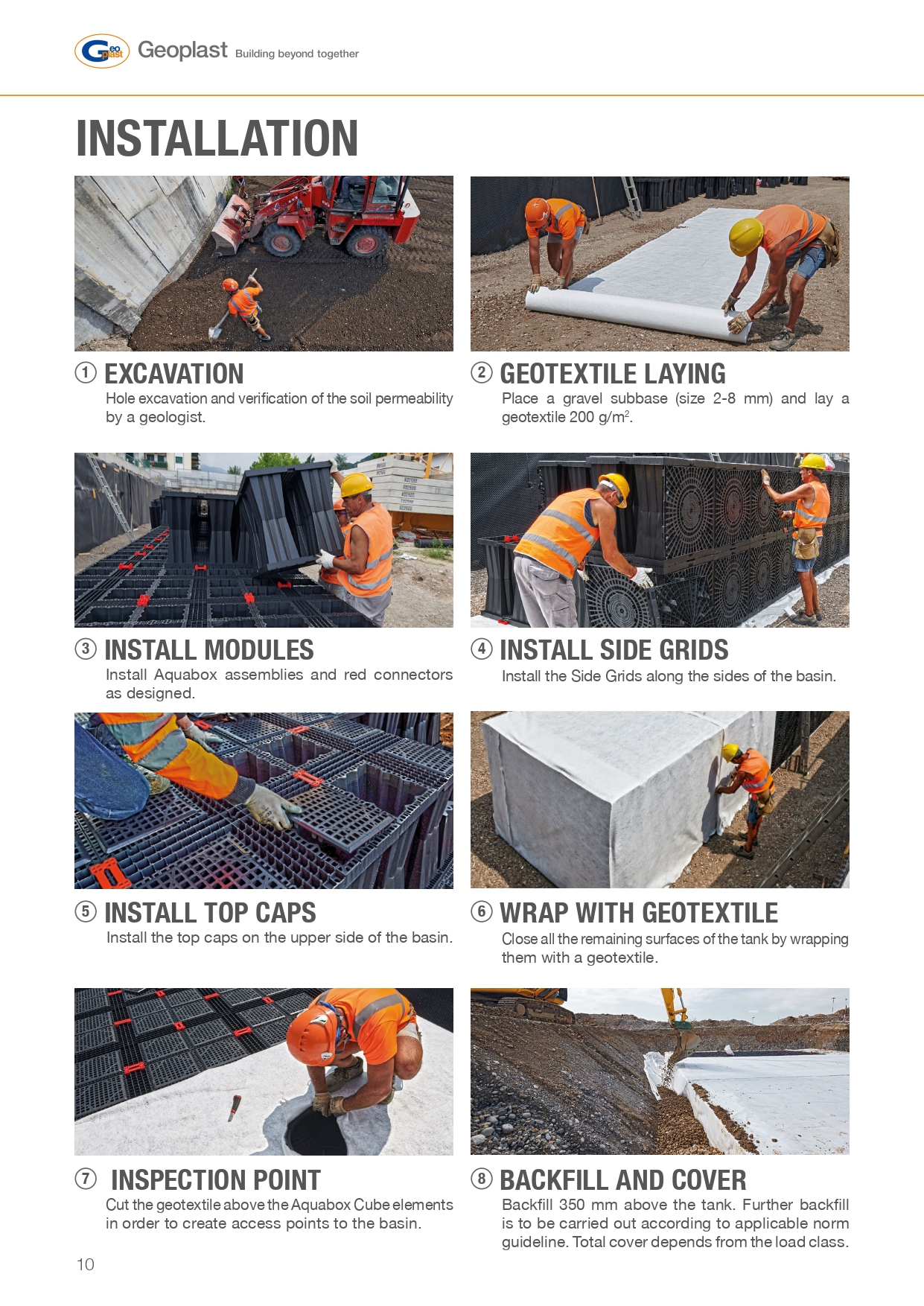

Hole excavation and verification of the soil permeability by a geologist.
Place a gravel subbase (size 2-8 mm) and lay a geotextile 200 g/m².
Install Aquabox assemblies and red connectors as designed.
Install the Side Grids along the sides of the basin.
Install the top caps on the upper side of the basin.
Close all the remaining surfaces of the tank by wrapping them with a geotextile.
Cut the geotextile above the Aquabox Cube elements in order to create access points to the basin.
Backfill 350 mm above the tank. Further backfill is carried out according to applicable norm guideline.
Depending on the loads applied, the area where they will be created and the height of the water table, tanks of different depth can be designed
For a correct sizing of the tank please contact Geoplast Spa.
| AQUABOX | HPR | HP | STR | ST |
| Max. load class | SLW 60 | SLW 60 | SLW 30 (SLW 60) | LANDSCAPING |
| Minimum depth of cover (m) | 0,7 | 0,7 | 0,5 (0,8) | 0,5 |
Calculation parameters: loads as per DIN1072, specific soil weight 18 kN/m3, maximum average soil temperature 20°C, k=0.3. Data valid for infiltration tanks.
In the case of frost-related requirements, minimum covering 0.8 m according to DIN1054, or following the locally applicable norms and regulations.
| AQUABOX | HPR | HP | STR | ST |
| Maximum installation depth (m) at the base of the tank (pedestrian load) | 6,3 | 6,1 | 4,2 | 3,1 |
Valid for 3-layer Aquabox basins. For other conditions, and for a correct sizing of the tank please contact Geoplast Spa.
Aquabox has been designed for attenuation tanks wrapped in a waterproof membrane installed at a depth above the maximum level of the water table. In the case of installation below that level a review of the necessary technical conditions is mandatory
