Geocross Data

GEOCROSS

–

Technical chart

Technical Scheme

Technical Data

Dimensions (cm)	58 x 58 x H3,5
Material	Gralene HD Black
Load capacity (t/m²)	100*
Weight per piece (kg)	1.50
Packaging size (cm)	120 x 120 x H240
No. of pallet pieces	260
Colour	Black
Closed surface area	60%

*The strength and condition of the soil influence the overall performance of the system

Packing and transport

Product code	–	FGEOCR05835
Pcs per m²	pcs/m²	3
Type of packing	–	Stacked on pallet
Pcs per pallet	pcs	256
Paver surface per pallet	m²	86
Packing dimensions	cm	120 x 120 x H240

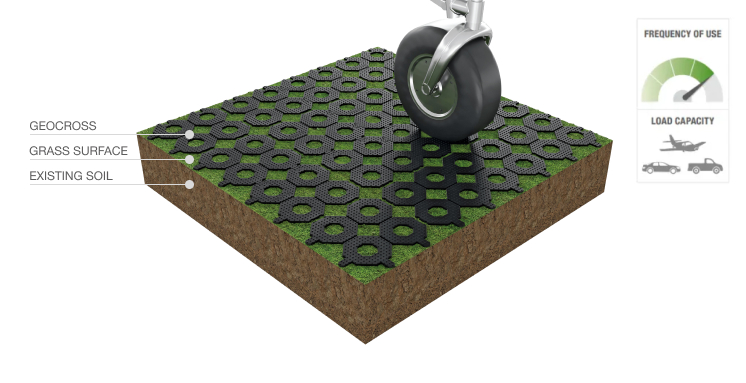

Structure

A good taxy ways, take-off landing surface improves the safety of the airfield, preventing mud fro splashing from the ground onto the aircraft’s wings

Installation instructions

1. Laying the pavers

Lay the grids on the existing lawn respecting the correct positioning of the hooks.

2. Fastening the pavers

Once the affected area has been laid, proceed with the hooking of each individual grid.

3. Rolling-in the pavers

Press the flooring with a rammer roller (or vibro com-pacting roller) so that the grids penetrate into the existing soil.

4. Finished surface

Matrix Steel reinforcement and pouring of concrete

Uniform anti-slip surface with high bearing capacity for green areas.

Robust connection

Variation of the moisture content and the temperature of the soil cause expansion and contraction cycles and subject Geocross to cause long-term stress. It is essential for the safety of the surface that it does not become disrupted, this is why the Geocross fastening system is designed to be very tobust and reliable.

Mini Geocross

The runaway marking in accordance with the regulations for grass runways (ICAO Annex 14) can easily be made with MINI GEOCROSS: directional numbers, mid-runway and centre lines, as well as for taxiways and parking areas

Mini Geocross technical scheme

Mini Geocross technical data

Dimensions (cm)	29 x 29 x H3,5
Material	Gralene HD Black (Polyethylene)
Load bearing capacity* (t/m²)	100*
Weight per piece (kg)	0,34
Type of packing	Stacked on pallet
No. of pallet pieces	480
Colour	White – Black
Closed surface area	98%

*The strength and condition of the soil influence the overall performance of the system
